Dartmouth College
Irving Institute for Energy and Society
The Irving Institute sought a purpose-designed space to bring interdisciplinary education and research to the work of driving a positive energy future. Their new home is now the university’s highest-performing building; it embodies Dartmouth’s distinct architectural style and its commitment to using 100% renewable energy by 2050.
-
Location
Size
Program
Practice area
Certifications
Awards
A vision without precedent
Our collaboration with the Irving Institute began while the Institute’s vision was still being shaped. But it was clear from day one that the new building would need to achieve high standards both in energy performance and in fostering learning and research. That meant delivering on a range of sustainability objectives (including net-zero readiness and integrated natural ventilation), and designing teaching and work spaces that would maximize flexibility and collaboration.
Enriching the campus experience

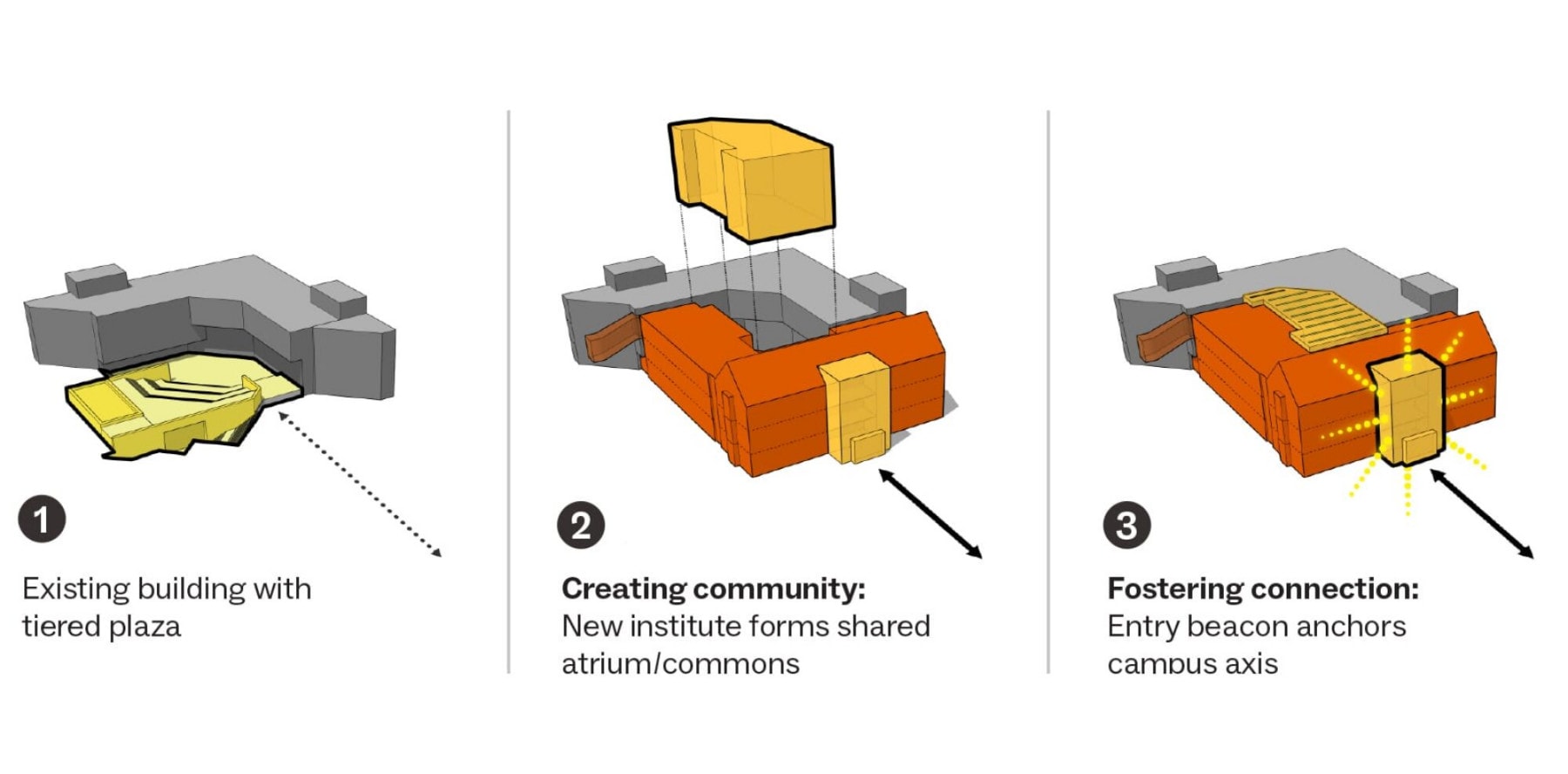

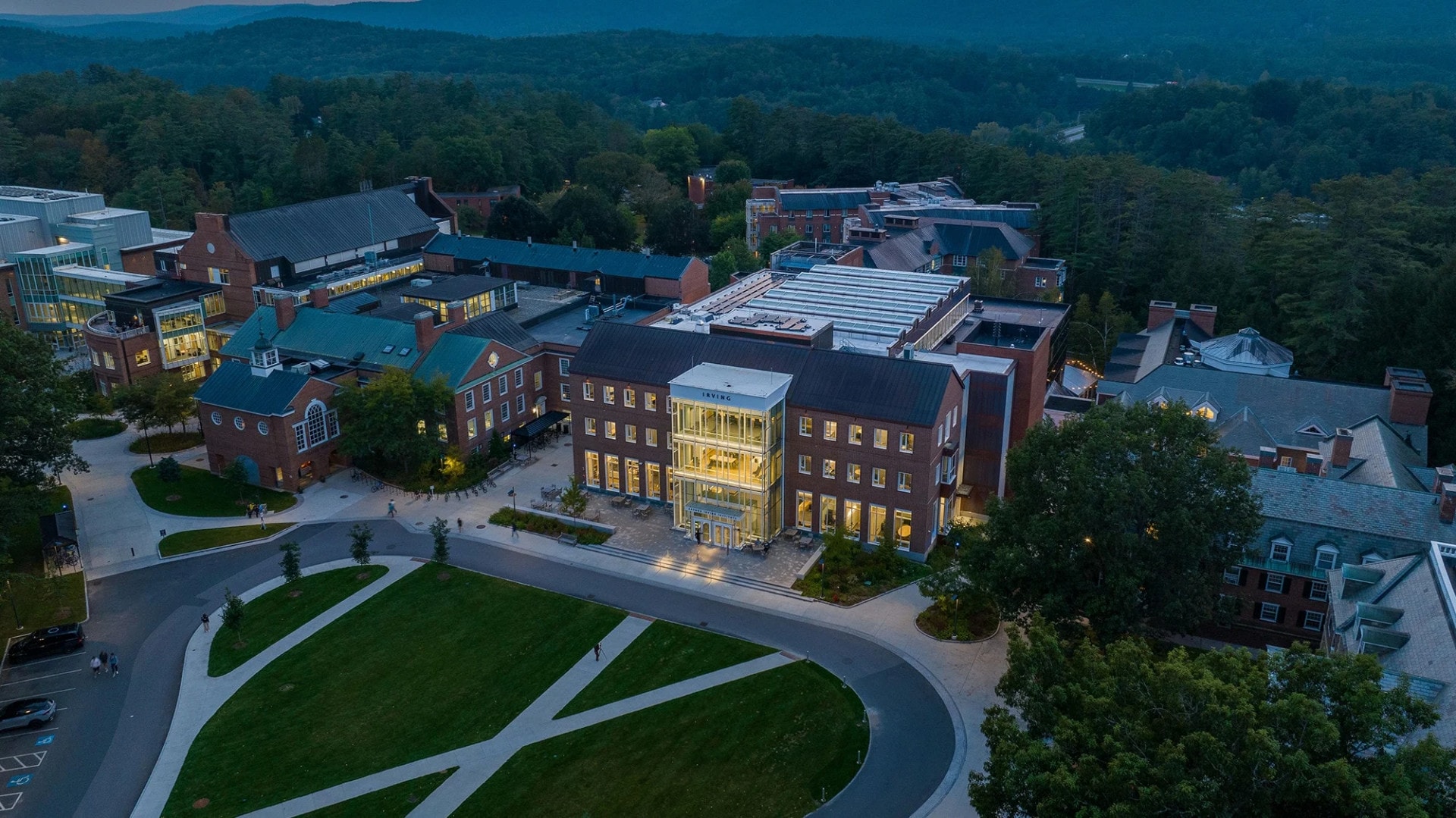

The building and site forge new academic and physical connections. Sitting directly between Tuck School of Business and Thayer School of Engineering, the Institute is the programmatic mixing valve of the new West End Innovation District; it brings together students and faculty from both of these schools to participate in shared research.

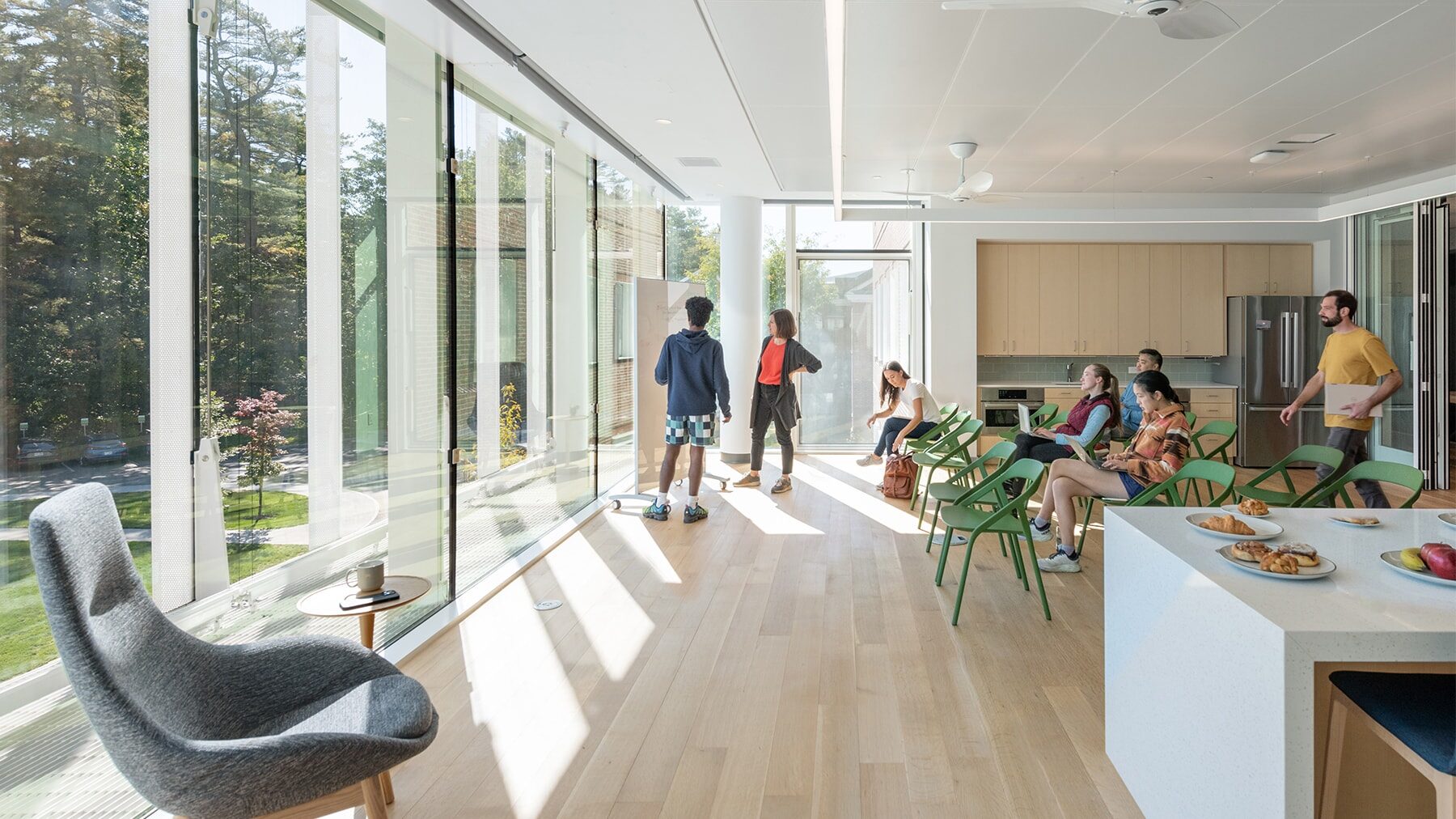

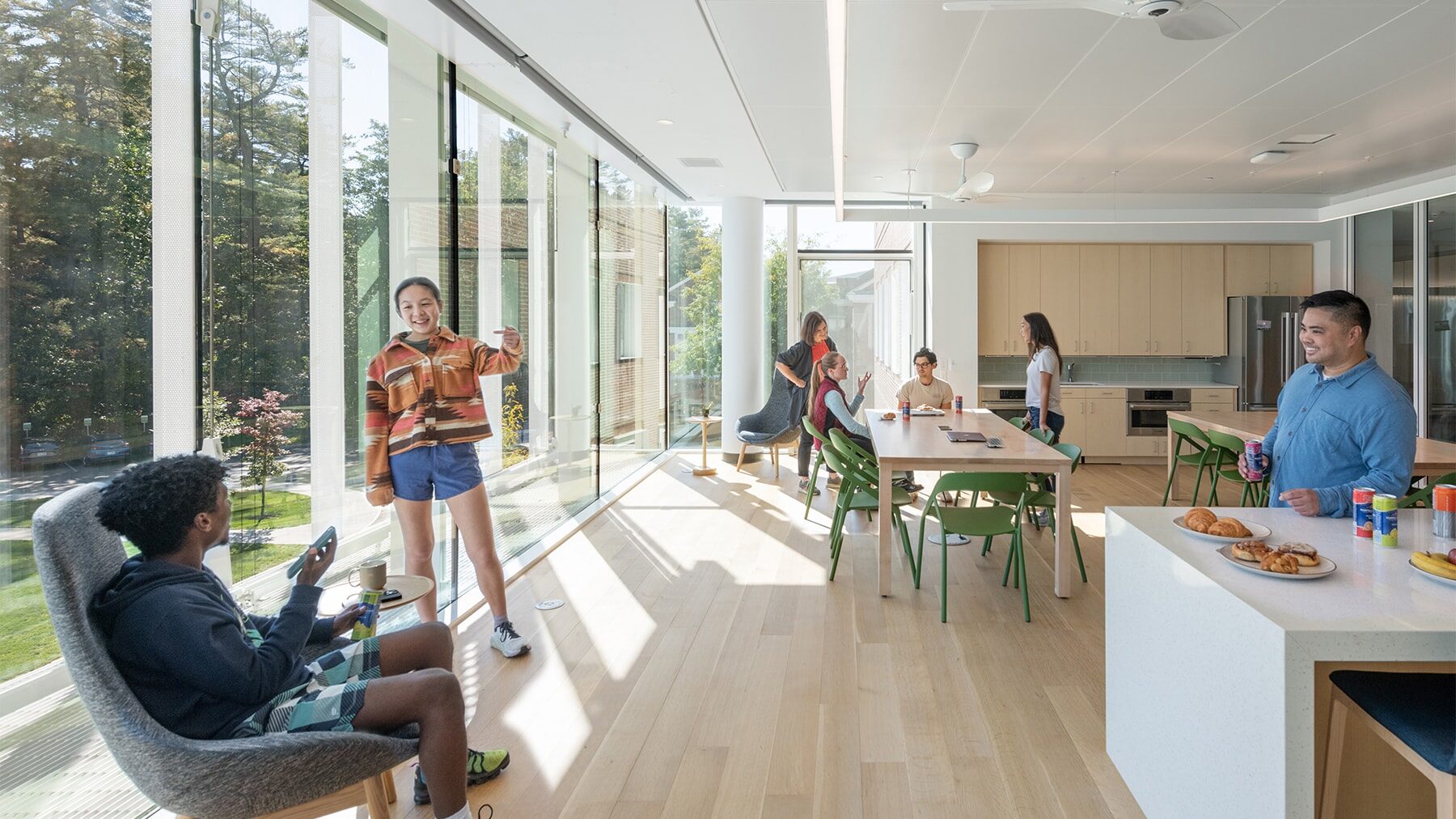

Before this project, the west end was inaccessible and lacked a community heart. Today, the Institute building and its site provide accessible, equitable routes through the district, and its atrium has been dubbed the “living room” of the west end. Abundant daylight, natural ventilation, and radiant heat and cooling make for a truly comfortable environment; it welcomes hundreds of students each day to its café and sunlit spaces.

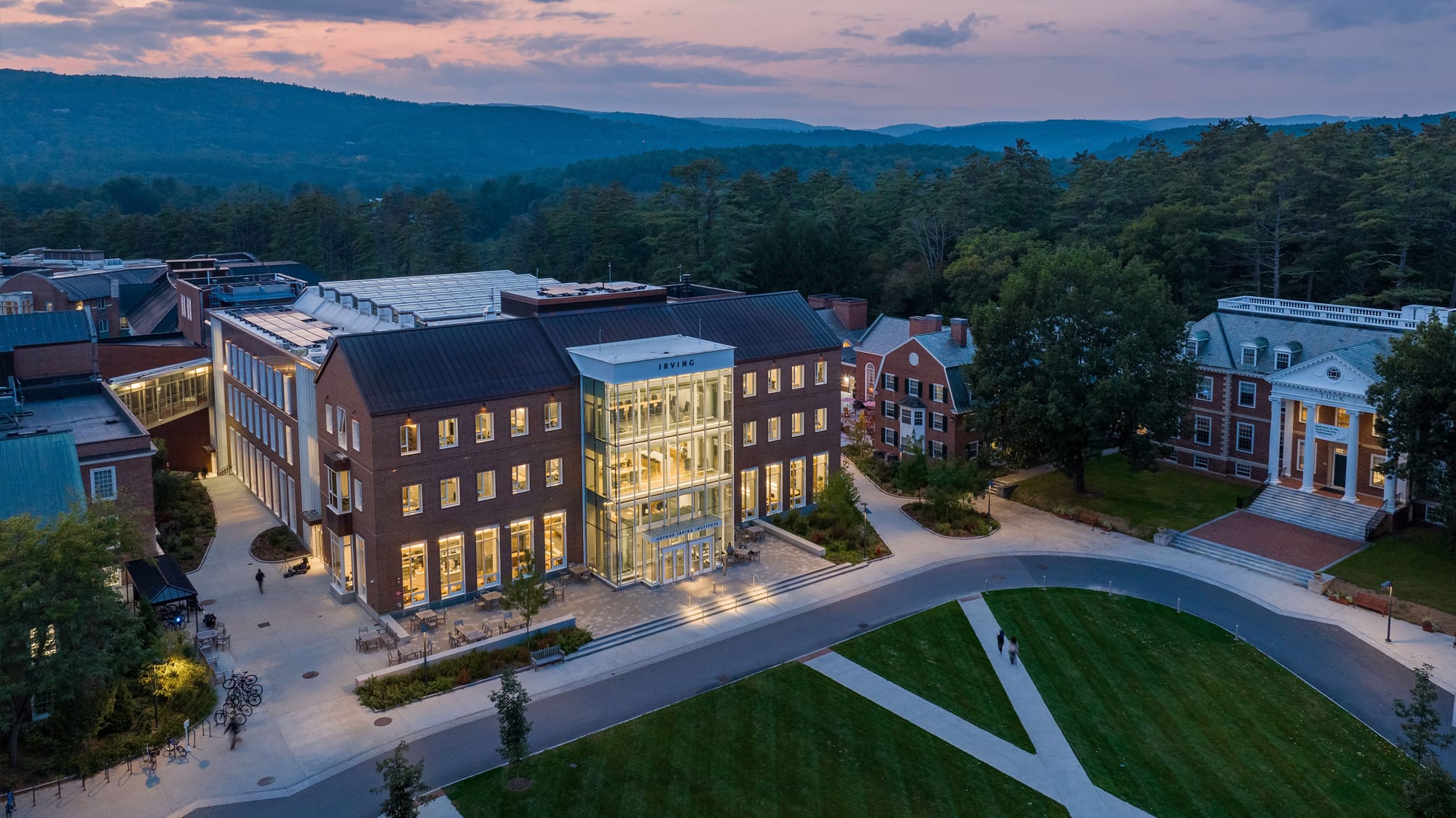

On axis with the iconic Baker library, our design responds to its historical context while presenting a vision for the future of learning and collaboration.

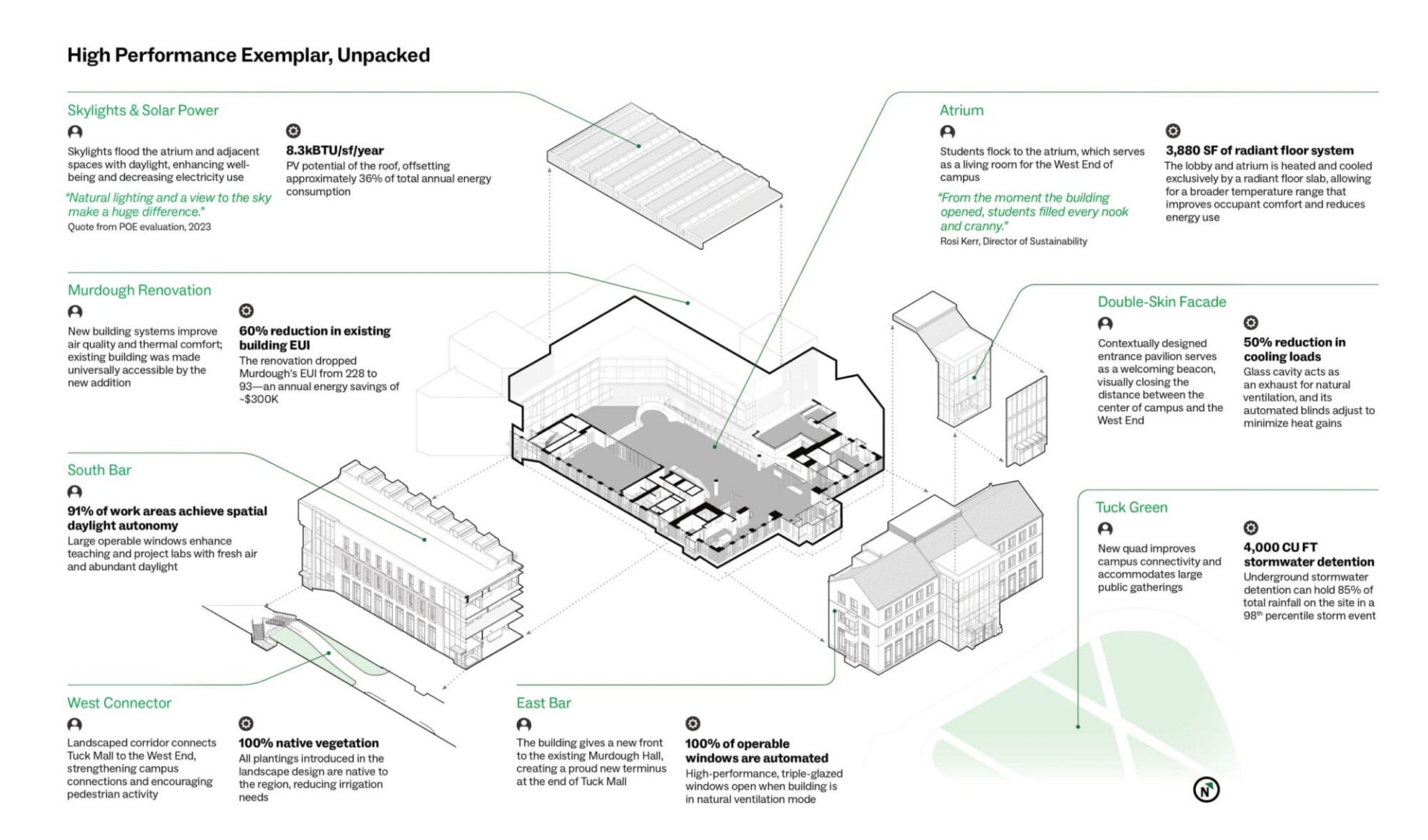

Raising the bar on sustainable design
The Irving Institute is an exemplary model for the future of sustainable building design, in large part due to the human-centered approach which informed its final forms. Occupant behavior was programmed into every aspect of the design, and it continues to play an integral role in further optimizing the building’s performance.

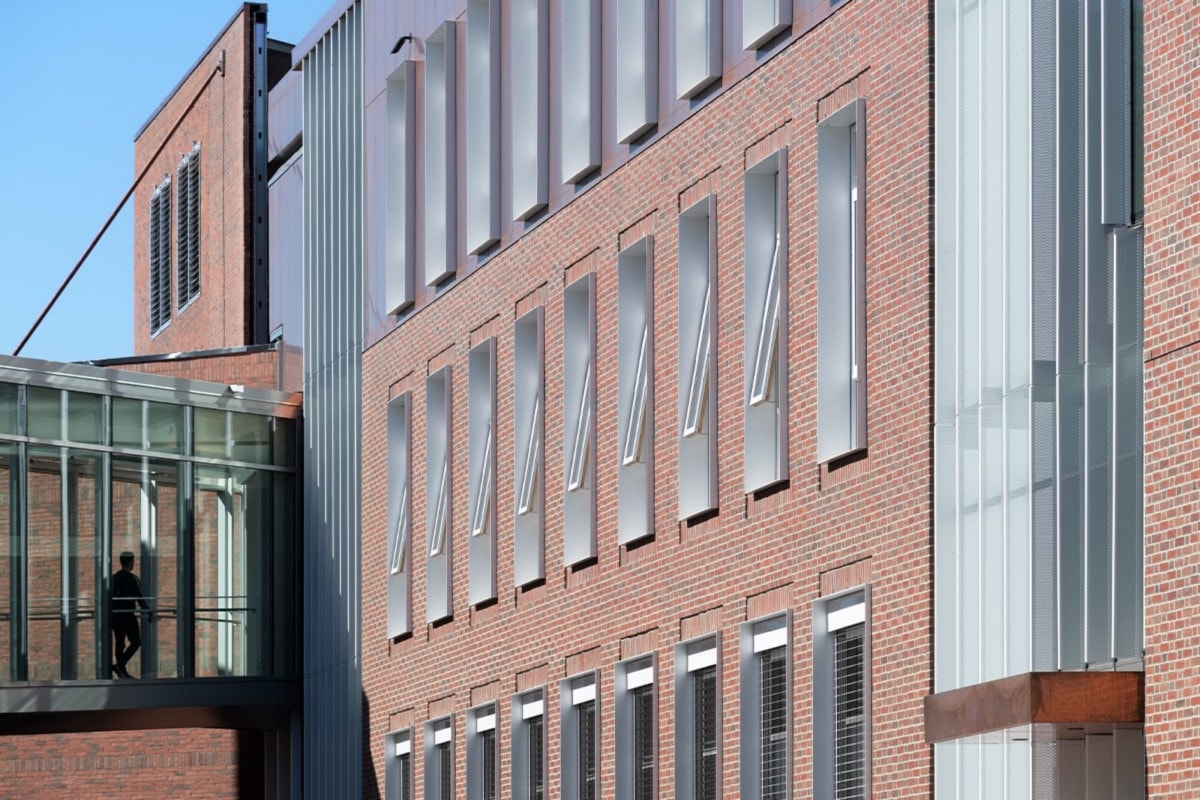

Natural ventilation, access to daylight, and views to the exterior were all maximized through the building’s facade and plan to promote occupant comfort and mental well-being. A passive ventilation system was also employed to encourage connections to the natural environment. Operable windows, temperature controls, and ceiling fans in the offices and labs provide users with the ability to change their immediate environment, while automated systems in public areas, such as deployable window shades, respond to factors systematically.
On a campus where the average building’s energy use intensity (EUI) is 130 kBtu/sf/yr, the institute has a projected net EUI of 18.6—an 88% reduction from the 2030 baseline.
There was no precedent for a building project with such ambitious energy targets at Dartmouth. Without a model, we faced unique design challenges as well as opportunities to influence future approaches.
Collaboration is at the center of our work. From a literal sense of transparency with many opportunities to ‘see in’ to the work in the building, to appealing, sunlit public spaces that draw residents out to meet each other, the building is accomplishing this goal.
a culture of collegiality
Mission accomplished
Today, the Irving Institute hums with activity as faculty and students from across campus gather here to collaborate on important research. An emphasis on internal transparency visually unites learning and work spaces while a rich variety of social spaces foster movement and interaction. High-efficiency systems that prioritize natural ventilation, and natural materials contribute to a healthy indoor environment. In short, the Institute’s building successfully embodies the mission of the Institute itself.
-
8.3 kBtu/sf/yr
PV potential of the institute’s roof, which offsets 36% of annual energy consumption
-
91%
Of work areas receive natural daylight, connecting users with their environment and campus context
-
35%
Reduction in embodied carbon below baseline through the reuse of existing foundation elements, low-concrete cement mixes, the use of wood framing for windows and curtain wall, and other low-carbon material choices.

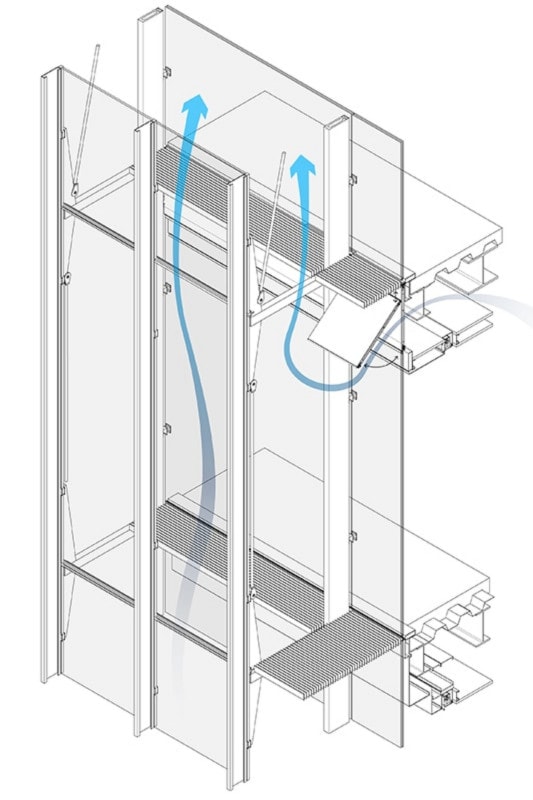

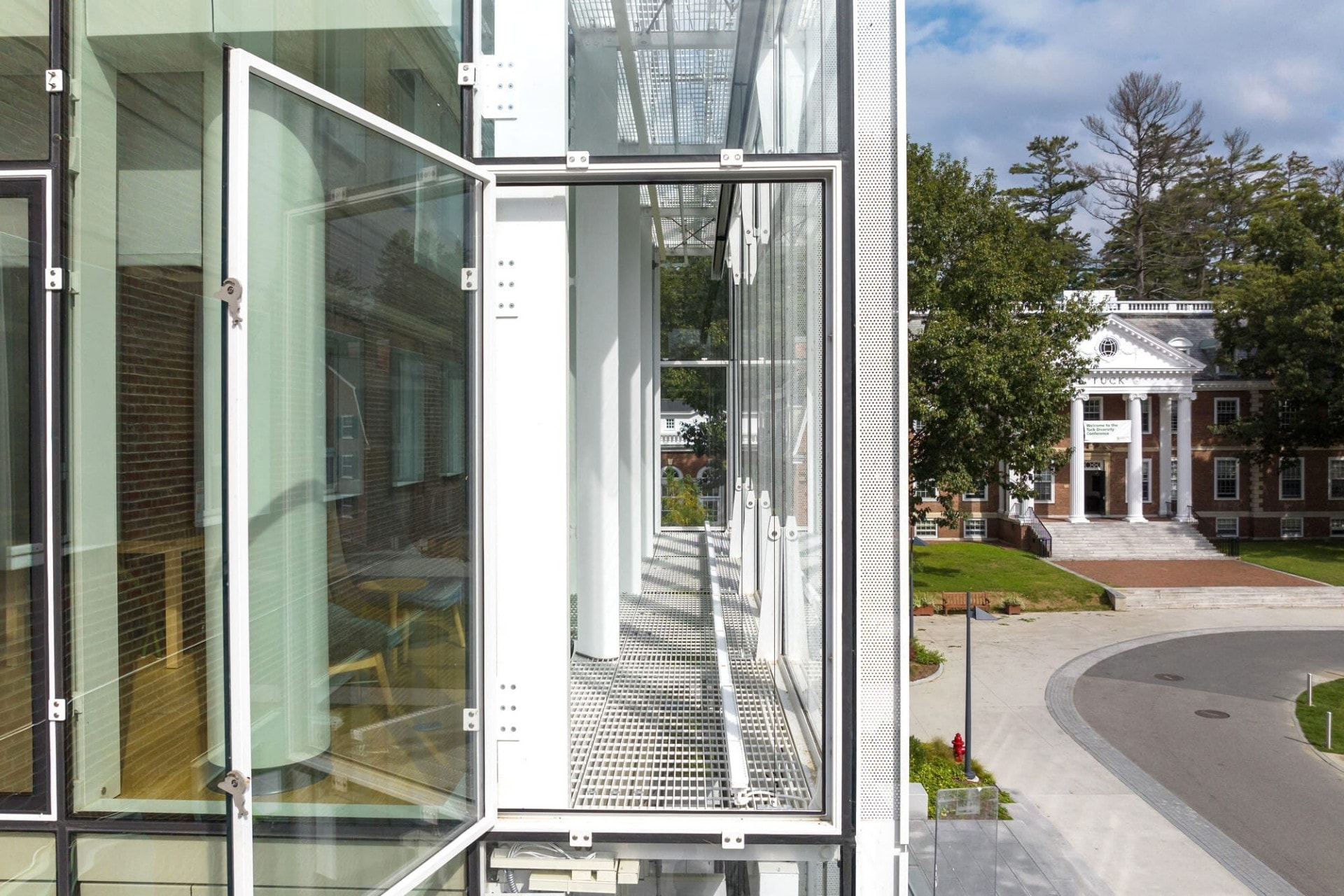

Prominent energy efficiency features—the natural ventilation chimney, the operable, integrated windows—not only make the space physically comfortable, but also serve as a demonstration of sustainability in practice. In this way, the building supports our mission in an integral way.”
